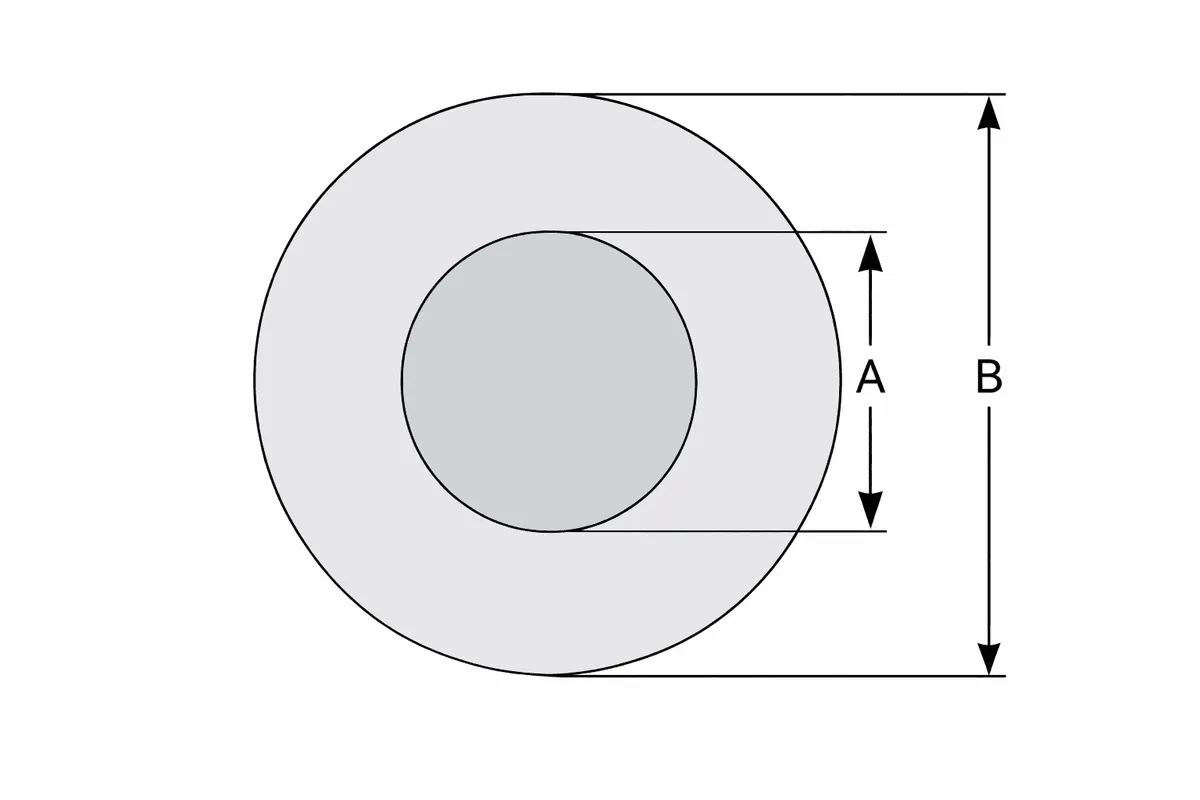

[ai] High voltage corona wire cross section showing conductor and PTFE insulation

High Voltage Corona Wire

Corona Wire

Single Conductor, Stranded Silver Plated Copper, Corona Resistant PTFE InsulationTemperature Variations from -90°C to +200°C have no life effect on the corona resistantAvailable Colors: White, Black, Red, Green, Yellow, Lt. Blue, Brown, Gray, Violet, Orange

Products

Item # Conductor Conductor Diameter Corona Insulation Corona Insulation Diameter Voltage AC @ 60 Hz (Sea Level) Voltage AC @ 60 Hz (80,000 Feet) Voltage DC Rating (Sea Level) Voltage DC Rating (80,000 Feet)
W-4101-1806 16 AWG 19/29 Silver Plated Copper 0.057 in Corona layer of overlapping tape 0.127 in
W-4116-1806 12 AWG 19/25 Silver Plated Copper 0.09 in Corona layer of overlapping tape 0.150 in
W-4210-1806 24 AWG 19/36 Silver Plated Copper 0.02 in Corona layer of overlapping tape 0.065 in
W-4431-4159 16 AWG 19/29 Silver Plated Copper 0.06 in Corona layer of overlapping tape 0.127 in 8000 V 5500 V 18,000 V 12,000 V
