H-M Termination Sleeves
Termination Sleeves
Shield terminator, environment resistant solder style.
Products

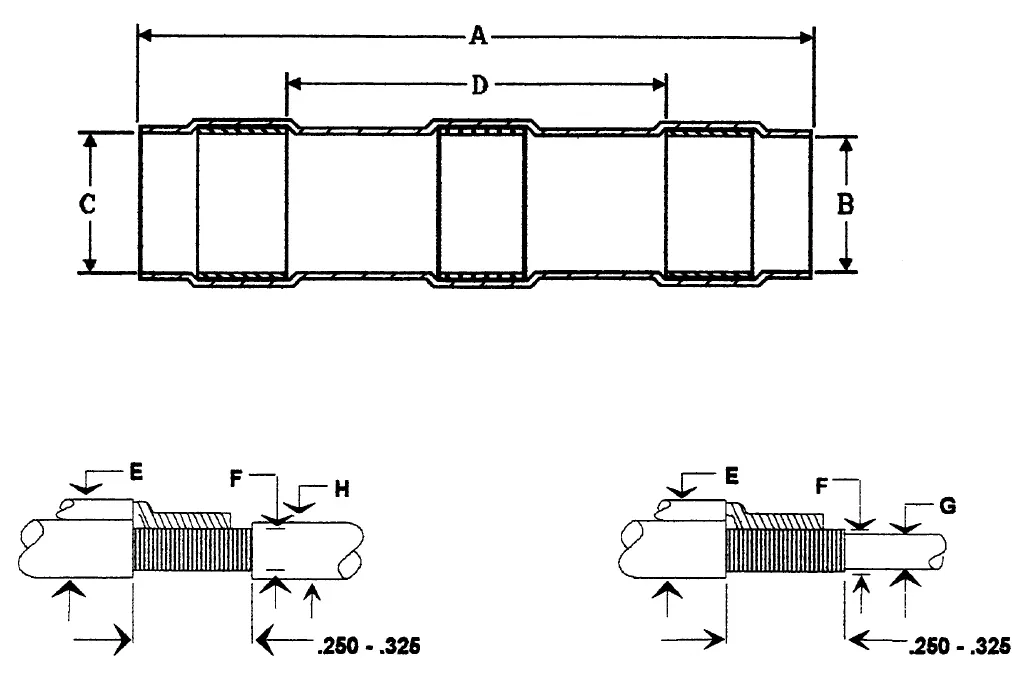

| Item # | Min. A | Min. B | Min. C | Max. E | Min. F |
|---|---|---|---|---|---|
| SS-H-M-1-05 | 0.500 in | 0.075 in | 0.105 in | 0.105 in | 0.035 in |
| SS-H-M-2-05 | 0.500 in | 0.105 in | 0.145 in | 0.145 in | 0.055 in |
| SS-H-M-3-05 | 0.500 in | 0.170 in | 0.200 in | 0.200 in | 0.085 in |
| SS-H-M-4-05 | 0.650 in | 0.235 in | 0.255 in | 0.255 in | 0.130 in |
| SS-H-M-5-05 | 0.650 in | 0.275 in | 0.300 in | 0.300 in | 0.170 in |
