L-C Termination Sleeves

Termination Sleeves

NAS 1745 low temp convection termination sleeve.

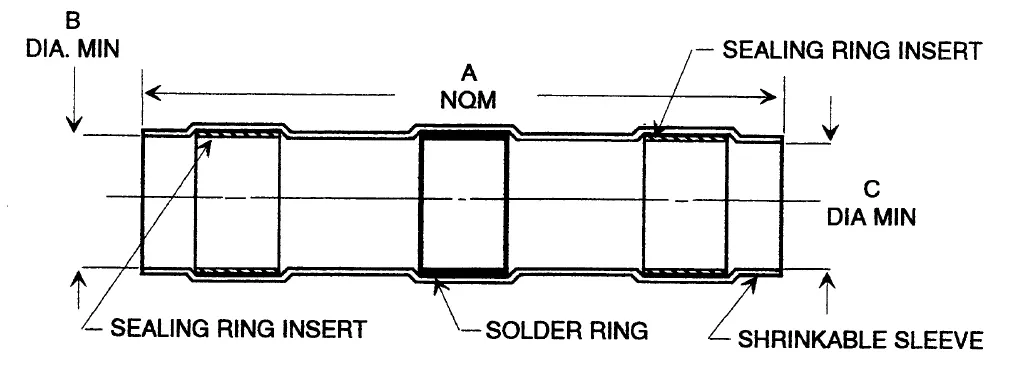

Item #	Min. A	Min. B	Min. C
SS-L-C-1	0.625 in	0.075 in	0.095 in
SS-L-C-2	0.625 in	0.110 in	0.125 in
SS-L-C-3	0.625 in	0.180 in	0.200 in
SS-L-C-4	0.750 in	0.235 in	0.280 in
SS-L-C-5	0.750 in	0.280 in	0.300 in
SS-L-C-6	1.10 in	0.440 in	0.460 in
SS-L-C-7	1.10 in	0.525 in	0.545 in
SS-L-C-2-10	0.625 in	0.110 in	0.125 in

Visit the FDH Electronics online store and create an account for special pricing.

Termination Sleeves
